Nichrome Nickel N Type Thermocouple Strips Used For Thermocouple Tabs From 0.2mm to 0.8mm Thickness
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple strip have excellent performance and are extensively used in the thermcouple connector's plug.
Thermocouple temperature range and tolerance
| Type | Standard | Operating temperature range (°C) | Tolerance(°C) |
| Long term | Short term | Grade | Temperature range | Tolerance |
| Type K | GB/T2614 K | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t |
| Type N | GB/T17615 N | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t |
| Type E | GB/T4993 E | 750 | 900 | I | -40~800 | ±1.5°C/±0.4%t |
| II | -40~900 | ±2.5°C/±0.75%t |
| Type J | GB/T4994 J | 600 | 750 | I | 0~750 | ±1.5°C/±0.4%t |
| II | ±2.5°C/±0.75%t |
| Type T | GB/T2903 T | 300 | 350 | I | -40~350 | ±0.5°C/±0.4%t |
| II | ±1°C/±0.75%t |
| III | -200~40 | ±1°C/±1.5%t |
Tankii's thermocouple products list includes the following:

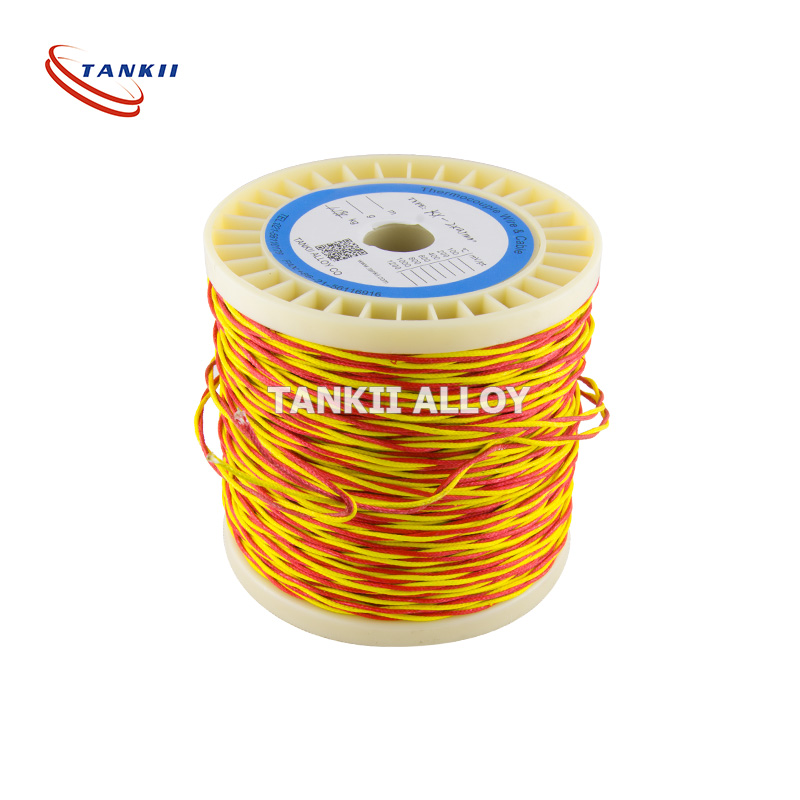

- Thermocouple wire - round and flat
- Thermocouple strip
- Thermocouple extension leads/extension cables
- Thermocouple compensating cables
- Bunched wire (Stranded wire)
- Thermocouple protection tubes
- Thermocouple connectors & plug
Application Range of thermocouple :
1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings industry
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
The application picture of thermocouple wire : thermocouple connector's plug
Delivery and Packing of thermocouple wire:
1. Packaging Details : with plastic film wrapped and carton package.
2. Leading time : 5 - 7 days, as the order quantity of thermocouple strip.
3. Delivery: By express, air, sea as per thermocouple strip
Please contact us if you are in the market of thermocouple strips or other thermocouple products.
